Introduction to the waterquality package

The main purpose of waterquality is to quickly and easily convert satellite-based reflectance imagery into one or many well-known water quality indices designed for the detection of harmful algal blooms (HABs) using the following pigment proxies: chlorophyll-a, blue-green algae (phycocyanin), and turbidity. Currently, this package is able to process 40 algorithms for the following satellite-based imagers: WorldView-2 and -3, Sentinel-2, Landsat-8, MODIS, MERIS, and OLCI. In order to improve the aesthetics of the wq_calc output, a series of intuitive Map_WQ functions were developed to help reduce technical barriers due to coding and the myriad of map options.

Additional functionality of the package includes a series of extract_lm functions which wrap the “Fitting Linear Models” and the “caret” packages to quickly generate a suite of regression models with standardized outputs. These functions range from simple linear models for a single dependent and independent variable to robust linear regression using crossvalidation over multiple dependent and independent variables. These functions are extremely useful when conducting experimental testing on a large number of satellite algorithms across multiple water quality parameters. NOTE these functions require ground-truth data in order to develop the models.

For an example of our entire research workflow, which includes data acquisition, image pre-processing, analyses, and results please see our publication entitled “Waterquality: An Open-Source R Package for the Detection and Quantification of Cyanobacterial Harmful Algal Blooms and Water Quality”.

Algorithms

Currently, the package includes a total of 40 algorithms that can be applied for the detection of the three parameters. NOTE not all sensors are capable of using all algorithms due to their spectral configurations. Each of the algorithms are searchable within the package, where there is a reference to the original paper (Ex. ?Am092Bsub()). Each algorithm is also linked to the original papers water quality parameters (chlorophyll-a, phycocyanin, turbidity) by type, which allows users to select all algorithms for that type. The final outputs are raster stacked images which represent relative index values and are not direct estimations of chlorophyll-a, phycocyanin, or turbidity values. However, relative index values can be converted to estimated concentration values using the extract_lm functions and ground truth measurements.

Water Quality Functions

wq_calc()

The main function of this package is called wq_calc() which calculates water quality indices by using a reflectance raster stack as an input, user-defined algorithm(s) selection, and satellite configuration selection corresponding to the following three arguments: terraRast, alg, and sat.

terraRast - The input reflectance image to be used in band algorithm calculation.
alg - Determines the indices to be utilized:
- Single Algorithm
- Multiple Algorithm
- Type of Algorithm
- All Possible Algorithms
sat - Determines the appropriate spectral configuration and subsequently appropriate algorithms to be calculated from predefined list:
- WorldView-2
- Sentinel-2
- Landsat-8
- MODIS
- MERIS
- OLCI

Single Algorithm

library(waterquality)
library(terra)
Harsha <- terra::rast(system.file("raster/S2_Harsha.tif", package = "waterquality"))

Harsha_Am092Bsub <- wq_calc(terraRast = Harsha,
                            alg = "MM12NDCI",
                            sat = "sentinel2")

terra::plot(Harsha_Am092Bsub)

Multiple Algorithms

Harsha_Multiple <- wq_calc(terraRast = Harsha,
                           alg = c("MM12NDCI", "Am092Bsub", "Da052BDA"),
                           sat = "sentinel2")

terra::plot(Harsha_Multiple)

Type of Algorithm

Harsha_PC <- wq_calc(Harsha,
                     alg = "chlorophyll",
                     sat = "sentinel2")

terra::plot(Harsha_PC)

All Algorithms

Harsha_All <- wq_calc(Harsha,
                      alg = "all",
                      sat = "sentinel2")

terra::plot(Harsha_All) # Only displays first 16 of 28

Mapping Functions

Map_WQ_raster

This function wraps the “tmap” package to help users to efficiently generate a map of a raster image which can be overlaid with optional geospatial objects and data histogram. In order to simplify this process and reduce the technical expertise required, the number of arguments were reduced to the following: - WQ_raster - Raster file generated from wq_calc or other GeoTiff file
- sample_points - geospatial file (.shp or .gpkg) containing sampling locations - map_title - text used to generate title of map - raster_style - method to process the color scale when col is a numeric variable. Please refer to the style argument in the ?tmap::tm_raster() function for more details (Default is “quantile”). - histogram - Option to add or remove a histogram of the data values. (Default is TRUE)

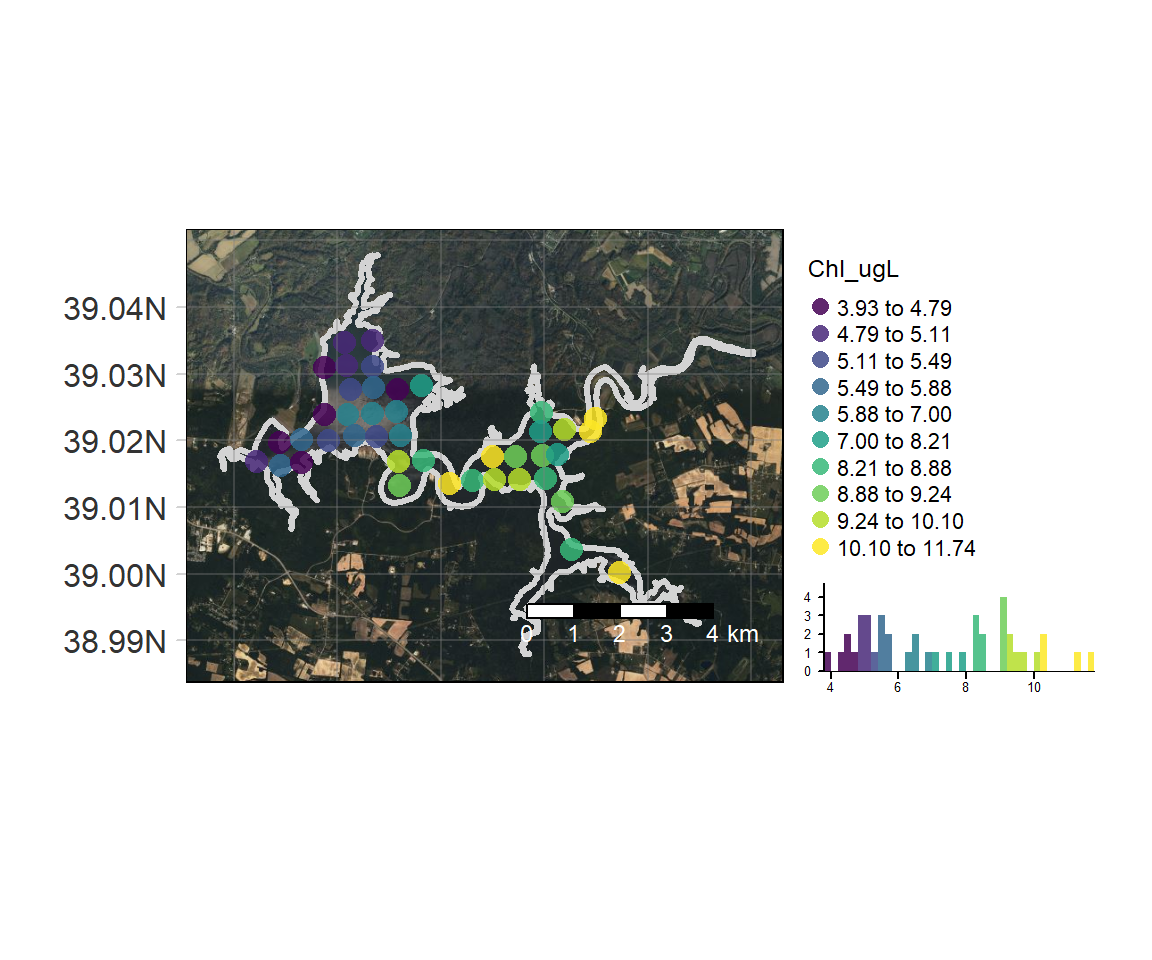

Raster with points

library(waterquality)
library(terra)
library(tmap)
library(sf)
s2 = terra::rast(system.file("raster/S2_Harsha.tif", package = "waterquality"))
MM12NDCI = wq_calc(s2, alg = "MM12NDCI", sat = "sentinel2")
samples = terra::vect(system.file("raster/Harsha_Simple_Points_CRS.gpkg", package = "waterquality"))
lake_extent = terra::vect(system.file("raster/Harsha_Lake_CRS.gpkg", package = "waterquality"))

Map_WQ_raster(WQ_raster = MM12NDCI,
              sample_points = samples,
              map_title= "Water Quality Map",
              raster_style = "quantile",
              histogram = TRUE)

Modeling Functions

Developing models is an essential step in water quality monitoring, and this requires sufficient coincident ground truth data. These functions have been developed to combine user-provided ground truth data and the results from the wq_calc function to generate a single or series of regression models. These functions have been developed to easily conduct linear models with standardized outputs, providing intuitive yet robust options. Most effectively, the functions will utilize a single comma delimited (.csv) file as the data frame source. Although these functions were designed for our water quality research, they can be used as standalone functions for any data to generate the same standardized outputs containing the following:
Global Model
- r²
- p-value
- slope
- intercept

Crossvalidated Model
- average r²
- average RMSE
- average MAE

Additionally, we have provided code that might be useful to help users import and extract the data from a raster stack image (i.e. output from wq_calc), combine it with a geospatial object (i.e shapefiles of sample locations), and export the results to a .csv file to be used in the modeling functions.

#Input raster image
wq_raster <- terra::rast("C:/temp/my_raster.tif")

#Input shapefile
wq_samples <- terra::vect('C:/temp/my_samples.shp')

#Extract values from raster and combine with shapefile
waterquality_data <- data.frame(wq_samples, terra::extract(wq_raster, wq_samples))

#Export results as csv file
write.csv(waterquality_data, file = "C:/temp/waterquality_data.csv")

extract_lm

parameter A string specifying water quality parameter
algorithm A string specifying water quality algorithm
df data frame containing the values for parameter and algorithm arguments

Example

library(waterquality)
library(caret)
df <- read.csv(system.file("raster/waterquality_data.csv", package = "waterquality"))

extract_lm(parameter = "Chl_ugL", algorithm = "MM12NDCI", df = df)
#> # A tibble: 1 × 4
#>   R_Squared Slope Intercept P_Value
#>       <dbl> <dbl>     <dbl>   <dbl>
#> 1     0.162  26.2      4.69   0.153

extract_lm_cv

parameter A string specifying water quality parameter
algorithm A string specifying water quality algorithm
df data frame containing the values for parameter and algorithm arguments
train_method A string specifying which classification or regression model to use (Default = “lm”). See ?caret::train for more details
control_method A string specifying the resampling method (Default = “repeatedcv”). See ?caret::trainControl for more details
folds the number of folds to be used in the cross validation model (Default = 3)
nrepeats the number of iterations to be used in the cross validation model (Default = 5)

Example

extract_lm_cv(parameter = "Chl_ugL", algorithm = "MM12NDCI",
                                       df = df, train_method = "lm", control_method = "repeatedcv",
                                       folds = 3, nrepeats = 5)
#> # A tibble: 1 × 7
#>   R_Squared Slope Intercept P_Value CV_R_Squared  RMSE   MAE
#>       <dbl> <dbl>     <dbl>   <dbl>        <dbl> <dbl> <dbl>
#> 1     0.162  26.2      4.69   0.153        0.341  1.43  1.12

extract_lm_cv_multi

parameters list of water quality parameters
algorithms list of water quality algorithms
df data frame containing the values for parameter and algorithm arguments
train_method A string specifying which classification or regression model to use (Default = “lm”). See ?caret::train for more details
control_method A string specifying the resampling method (Default = “repeatedcv”). See ?caret::trainControl for more details
folds the number of folds to be used in the cross validation model (Default = 3)
nrepeats the number of iterations to be used in the cross validation model (Default = 5)

Example

# Create series of strings to be used for parameters and algorithms arguments
algorithms <- c(names(df[6:10]))
parameters <- c(names(df[3:5]))
extract_lm_cv_multi_results <- extract_lm_cv_multi(parameters = parameters, algorithms = algorithms,
                                                   df = df, train_method = "lm", control_method = "repeatedcv",
                                                   folds = 3, nrepeats = 5)
head(extract_lm_cv_multi_results)
#> # A tibble: 6 × 8
#>   Algorithms       R_Squared    Slope Intercept P_Value CV_R_Squared  RMSE   MAE
#>   <chr>                <dbl>    <dbl>     <dbl>   <dbl>        <dbl> <dbl> <dbl>
#> 1 Turbid_NTU_Al10…     0.441 -30.5      -4.37   9.54e-3        0.637  2.77  1.86
#> 2 Turbid_NTU_Go04…     0.763   0.0430    0.311  4.46e-5        0.502  2.22  1.43
#> 3 Turbid_NTU_Ku15…     0.432   0.0818   -0.0687 1.06e-2        0.577  2.90  1.86
#> 4 Turbid_NTU_MM12…     0.166  42.3       0.370  1.48e-1        0.318  2.78  1.85
#> 5 Turbid_NTU_Wy08…     0.432   0.0818   -0.0687 1.06e-2        0.468  2.87  1.83
#> 6 Chl_ugL_Al10SABI     0.534 -21.0       1.30   2.99e-3        0.538  1.38  1.08

extract_lm_cv_all

parameters list of water quality parameters
df data frame containing the values for parameter and algorithm arguments
train_method A string specifying which classification or regression model to use (Default = “lm”). See ?caret::train for more details
control_method A string specifying the resampling method (Default = “repeatedcv”). See ?caret::trainControl for more details
folds the number of folds to be used in the cross validation model (Default = 3)
nrepeats the number of iterations to be used in the cross validation model (Default = 5)

Example

extract_lm_cv_all_results <- extract_lm_cv_all(parameters = parameters, df = df,
                                                 train_method = "lm", control_method = "repeatedcv",
                                                 folds = 3, nrepeats = 5)
head(extract_lm_cv_all_results)
#> # A tibble: 6 × 8
#>   Algorithms        R_Squared  Slope Intercept  P_Value CV_R_Squared  RMSE   MAE
#>   <chr>                 <dbl>  <dbl>     <dbl>    <dbl>        <dbl> <dbl> <dbl>
#> 1 Turbid_NTU_pH         0.976 -14.1    125.    4.86e-11        0.681  1.39 0.778
#> 2 Turbid_NTU_Al10S…     0.441 -30.5     -4.37  9.54e- 3        0.461  2.43 1.48
#> 3 Turbid_NTU_MM12N…     0.166  42.3      0.370 1.48e- 1        0.235  2.49 1.53
#> 4 Turbid_NTU_Da052…     0.168  19.2    -18.7   1.45e- 1        0.341  2.80 1.78
#> 5 Turbid_NTU_MM12N…     0.166  42.3      0.370 1.48e- 1        0.304  2.74 1.83
#> 6 Turbid_NTU_TurbD…     0.136  -7.44     5.47  1.95e- 1        0.324  2.76 1.88

Acknowledgements

The waterquality package was developed with funding from the U.S. Army Corps of Engineers. The authors would also like to thank the University of Cincinnati Library’s Research & Data Services and the University of Cincinnati’s Space Informatics Lab for their expertise and technical services.

Credit

To cite this library, please use the following entry:

Johansen R., Reif M., Emery E., Nowosad J., Beck R., Xu M., Liu H., waterquality: An Open-Source R Package for the Detection and Quantification of Cyanobacterial Harmful Algal Blooms and Water Quality. USACE ERDC/EL TR-19-20; DOI: 10.21079/11681/35053

@Article{, author = {Richard Johansen and Molly Reif and Erich Emery and Jakub Nowosad and Richard Beck and Min Xu and Hongxing Liu}, title = {waterquality: An Open-Source R Package for the Detection and Quantification of Cyanobacterial Harmful Algal Blooms and Water Quality}, year = {2019}, doi = {10.21079/11681/35053}, journal = {USACE ERDC/EL TR-19-20}, }
